Low-e insulating glass

The vacuum sputtering process coats glass surfaces with several layers of different materials. Among these, a silver layer effectively reflects infrared rays while maintaining excellent thermal performance. The composition of off-line LOW-E glass fillms is:glass/metal oxides/metal/metal oxides.the glass can be horizontal heat-treated and bent tempered. Off-line low-e glass is especially suitable for applications on arc construction windows and curtain walls.

FEATURE:
Visible light transmittance
Solar energy transmittance
High far infrared reflectance
Can be bent and post-tempered after coating

SPECIFICATION:
Thickness:3 -19mm
Max. size: 2440mm x 5000mm
Min. size: 300mm x300mm
The other thicknesses and sizes may be available upon request.

APPLICATION:

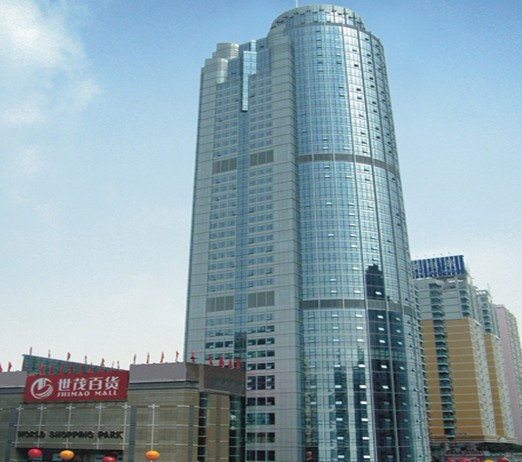

Architecture windows , curtain walls ,train windows, refrigerator, etc.

PACKAGING DETAIL:
wooden case

NOTES:
You'd better not use Loe-E as a single glazing and must be sealed or processed into insulating glass unit within a very short time as the metallic oxide coating is prone to undesirable reactions once exposed to air. identify the coating surface of Low-E glass.

Low-E Insulating Glass Performance Data

Glass No. Combination Coating surface Visible light factors (%) SC Ug (w/m2k)
Trans. Outdoor
reflectance
Indoor
reflectance
PLT 1.3T 5-9-5 2 76 12 11 2.07 1.68
3 76 11 11 2.07 1.68
6-9-6 2 75 11 11 2.06 1.67
3 75 11 11 2.06 1.67
6-12-6 2 75 11 11 1.77 1.43
3 75 11 11 1.77 1.43
6-16-6 2 75 11 11 1.54 1.29
3 75 11 11 1.54 1.29
PLT 1.16II 6-9-6 2 78 12 12 1.98 1.56
3 78 12 12 1.98 1.56
6-12-6 2 78 12 12 1.67 1.30
3 78 12 12 1.66 1.30
6-16-6 2 78 12 12 1.42 1.16
3 78 12 12 1.42 1.16
KT 140 6-12-6 2 37 23 12 1.79 1.46
KT155 6-9-6 2 47 17 10 2.16 1.79
6-12-6 2 47 17 10 1.89 1.57
KT164 6-9-6 2 57 14 10 2.16 1.79
6-12-6 2 57 14 10 1.88 1.56
PLANISOL 6-9-6 2 58 19 13 2.02 1.62
6-12-6 2 58 19 13 1.72 1.37
SKN 154 II 6-12-6 2 50 18 26 1.55 1.16
6-16-6 2 50 18 26 1.29 1.00
SKN 163 II 6-12-6 2 58 15 16 1.58 1.20
6-16-6 2 58 15 16 1.32 1.04
SKN 165 II 6-12-6 2 59 15 17 1.61 1.24
6-16-6 2 59 15 17 1.36 1.08
SKN 174II 6-12-6 2 67 10 12 1.64 1.28
6-16-6 2 67 10 12 1.4 1.13
